Facing the output arrow in the right direction
This guide outlines how to properly direct the Light Strand's output arrow when wiring your Oelo System. This step is crucial for lights to properly function; if the arrow is facing the wrong direction, your system won't work.
Before continuing, make sure you have read the installation manual. It can be found here.
Facing the output arrow in the right direction

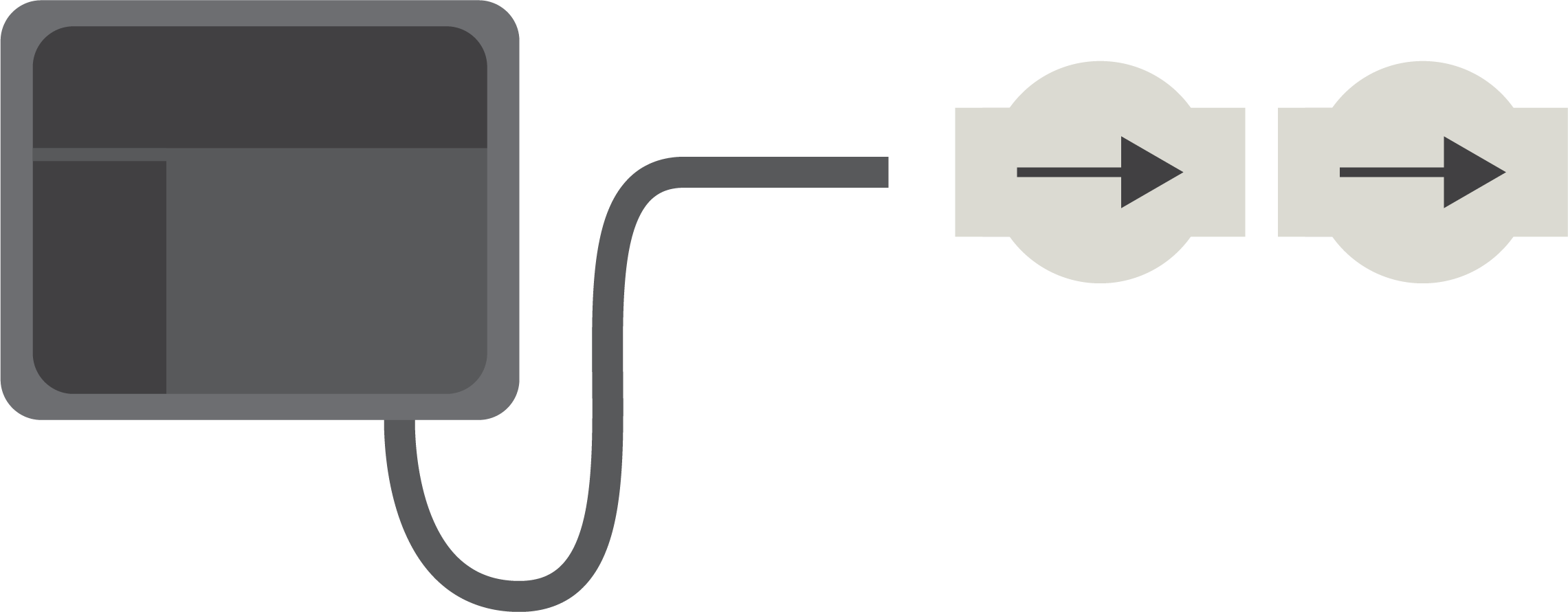

1. Check your connections to verify that the output arrow, located on each Light Puck, is pointing AWAY from the Control Unit.
2. If the arrow is not pointing away from the Control Unit, you will have to cut out that Light Strand section and reverse the orientation.
3. You can learn how to cut out a Light Strand here.
4. After verifying that all arrows are facing the correct direction, test the system.
